Active Cooling GoodWe ET, ET-plus 24V DC

Basic cooling variant for photovoltaic inverters with a 24V thermostat, allowing for easy installation without the need for tools.

Graph with our cooling efficiency measurements - (here). More measurements our cooling fan for solar inverter from customers can be found in the links in the top menu of the website.

Supported Inverters:

GoodWe ET Plus+ 5-10kW (datasheet)

GoodWe ET Plus+ 16A 5-10kW (datasheet)

AEG HYBRID INVERTER 5-10kW (datasheet)

Minimum required space under the inverter fin is 12 cm.

The package includes a high-quality 24V 1.2A power supply with a 2m cable. If needed, extensions of 1.5m or 4m can be purchased separately.

Power Supply: 24V DC (5.5*2.1), minimum 0.8A

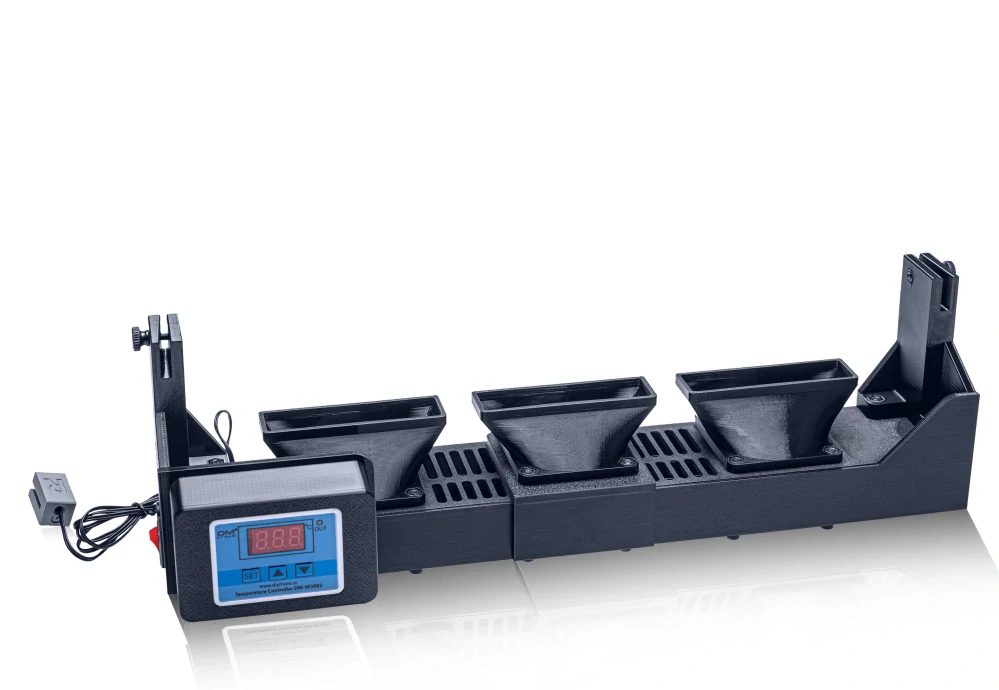

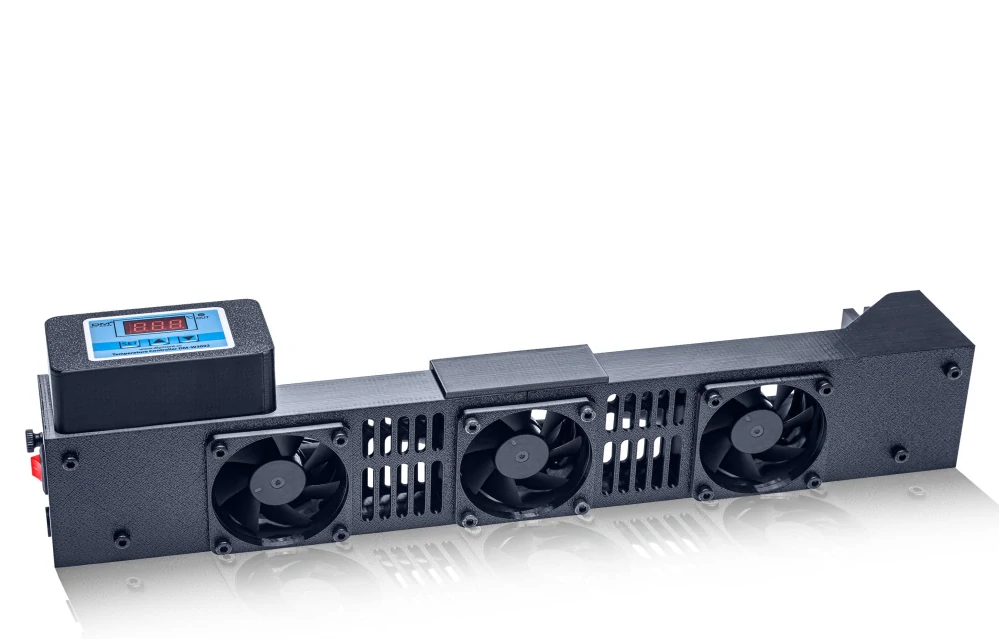

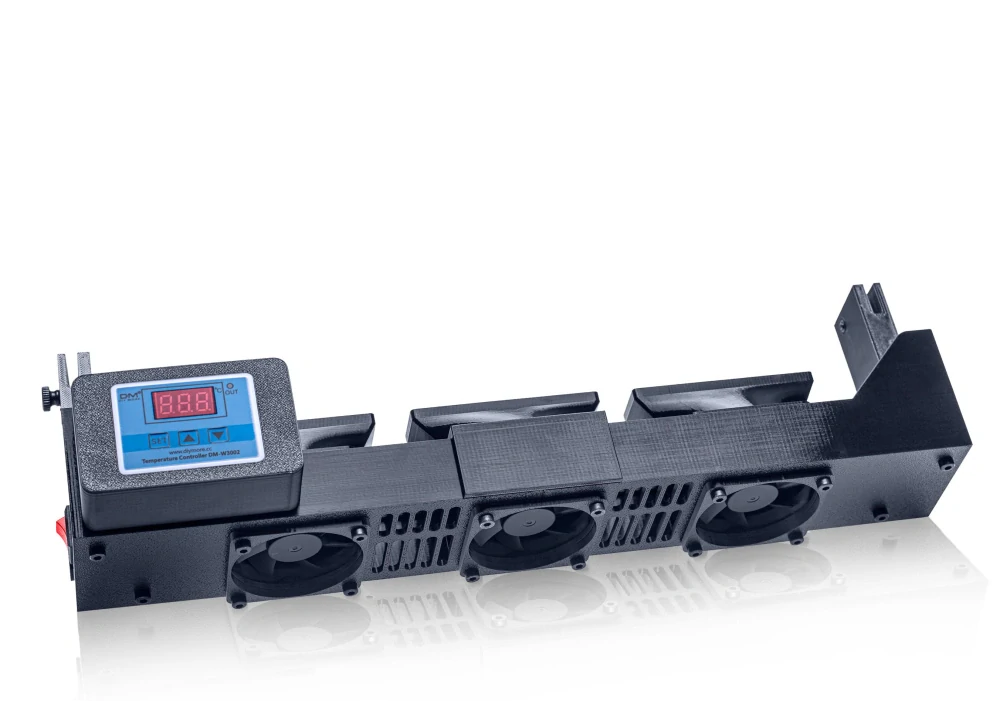

Active Cooling: 3 x Sunon 60mm fans, Vapo (MagLev), rated lifespan of 70,000 hours, noise level 31dBa, total airflow of 138m³/h
Power Consumption: Stand-by 0.5W, operating 7W
Material: Construction made using 3D printing

Function Description:
Active cooling brings air from the bottom direction. By using the cooling system, you can reduce the inverter temperature under load by 15-30 degrees (depending on installation conditions). This will prevent production limitations on hot days and simultaneously extend the lifespan of the photovoltaic inverter. The thermostat is set by default to turn on the cooling at 40°C and turn it off at 35°C, measured at the inverter fin where the sensor is installed.

Installation:

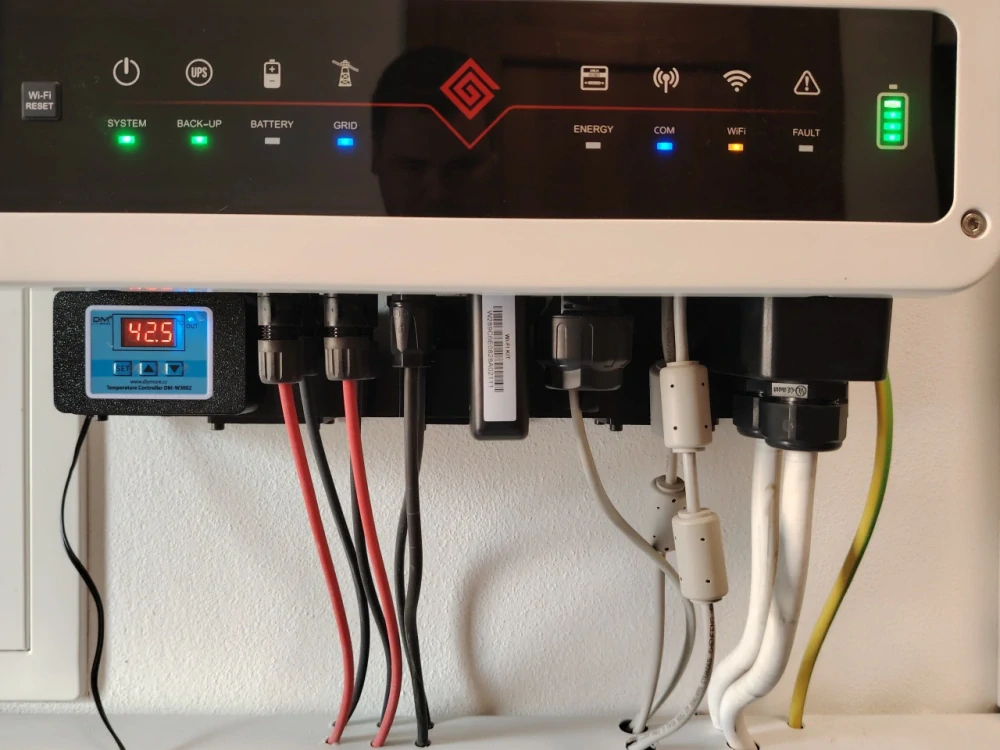

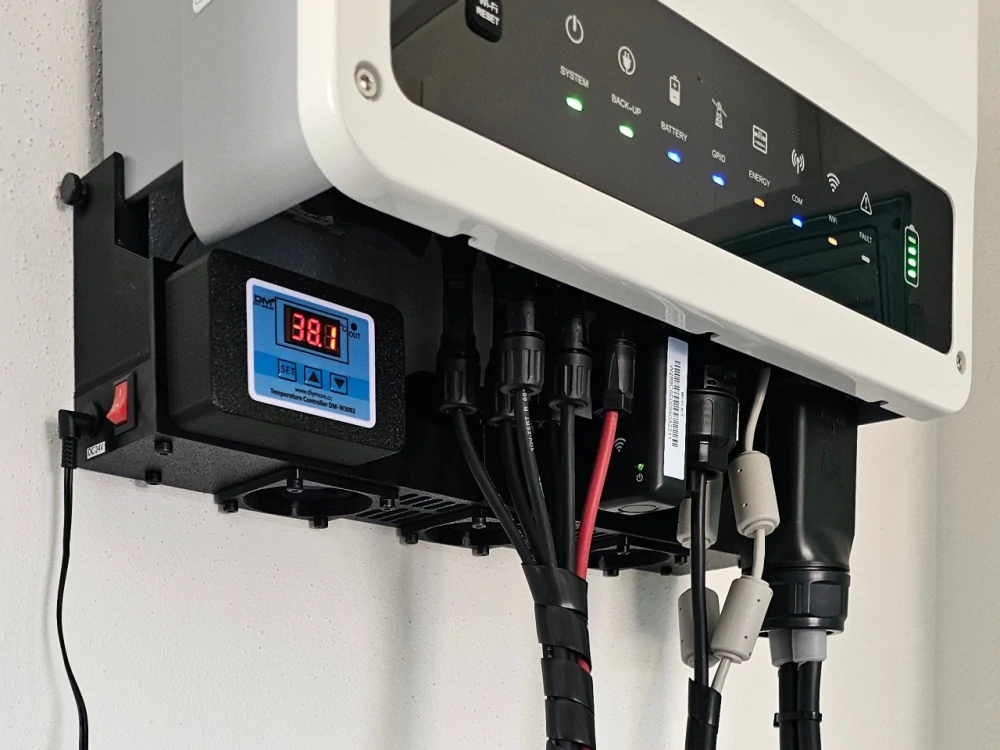

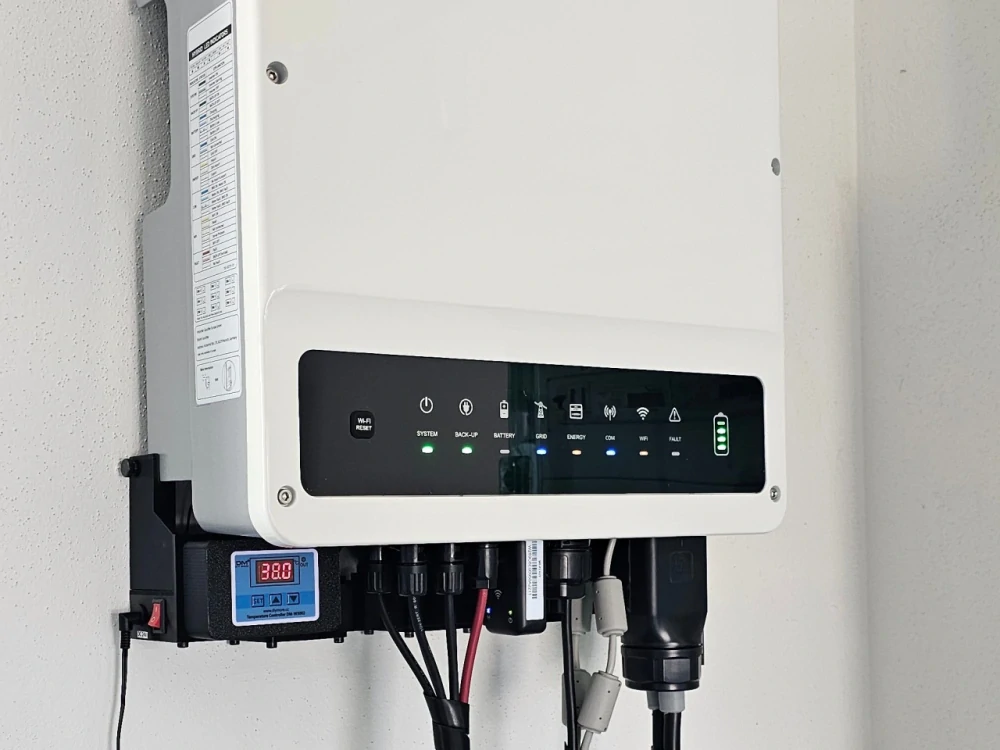

The installation is done by sliding the cooler under the photovoltaic inverter and then snapping it onto the bottom ends of the fins. Next, secure it to the fin with the side screws. The sensor is threaded behind the inverter and placed on the fins in the left third, towards the middle. Insert the sensor at the rear and slide it forward until it fits securely. To remove, follow the reverse procedure.

Setting the Turn-On and Turn-Off Temperature:

See User Manual for adjustment instructions.
